Visualize Coverage, LogR, and BAF

Overview

lohhlamod includes a dedicated visualization tool, lohhlaplot, to generate diagnostic plots for result interpretation. lohhlaplot utilizes the .rds files as the data backend to reconstruct the allelic landscape.

Quick example

lohhlaplot --sample "$subject" --loh_res "$loh_res_file" --loh_dir $loh_outdir
Input options
  • --sample: The subject ID (matching the --subject value used in lohhlamod).
  • --loh_res: The primary LOH result file ($subject.loh.res.tsv).
  • --loh_dir: The directory containing the intermediate .rds files.
CLI help

Run lohhlaplot --help for details.

Visualization demonstration

The following plots use the s6 simulation data provided in the repository. In this case, a LOH event is present in the HLA-A gene.

Allelic coverage distribution

These plots show the raw read depth across the entire length of the two alleles (hla_a_11_02_01 and hla_a_30_01_01).

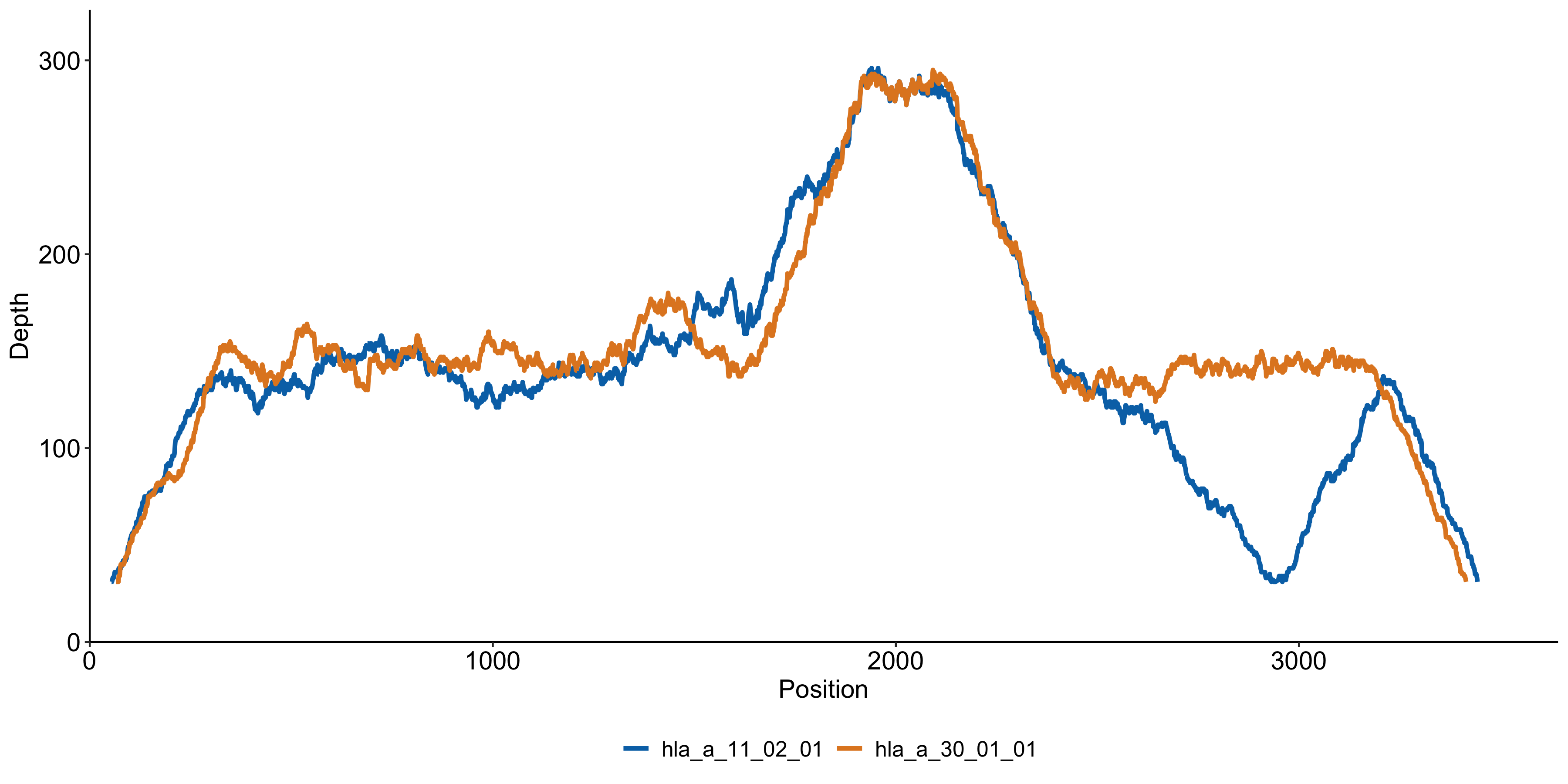

Normal sample: Shows expected balanced coverage between the two alleles.

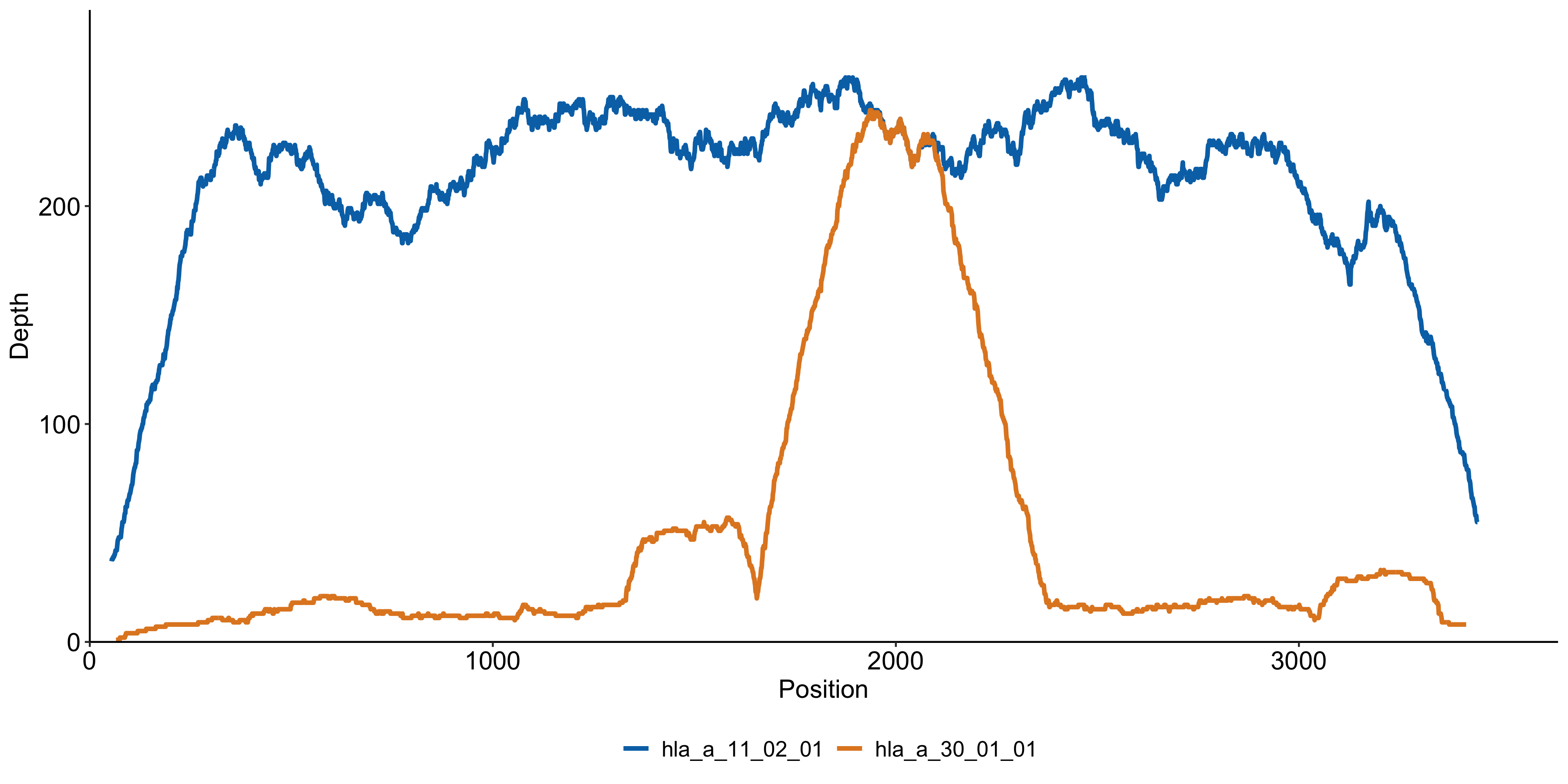

Tumor sample: Shows a visible drop in coverage for one allele, suggesting a potential loss.

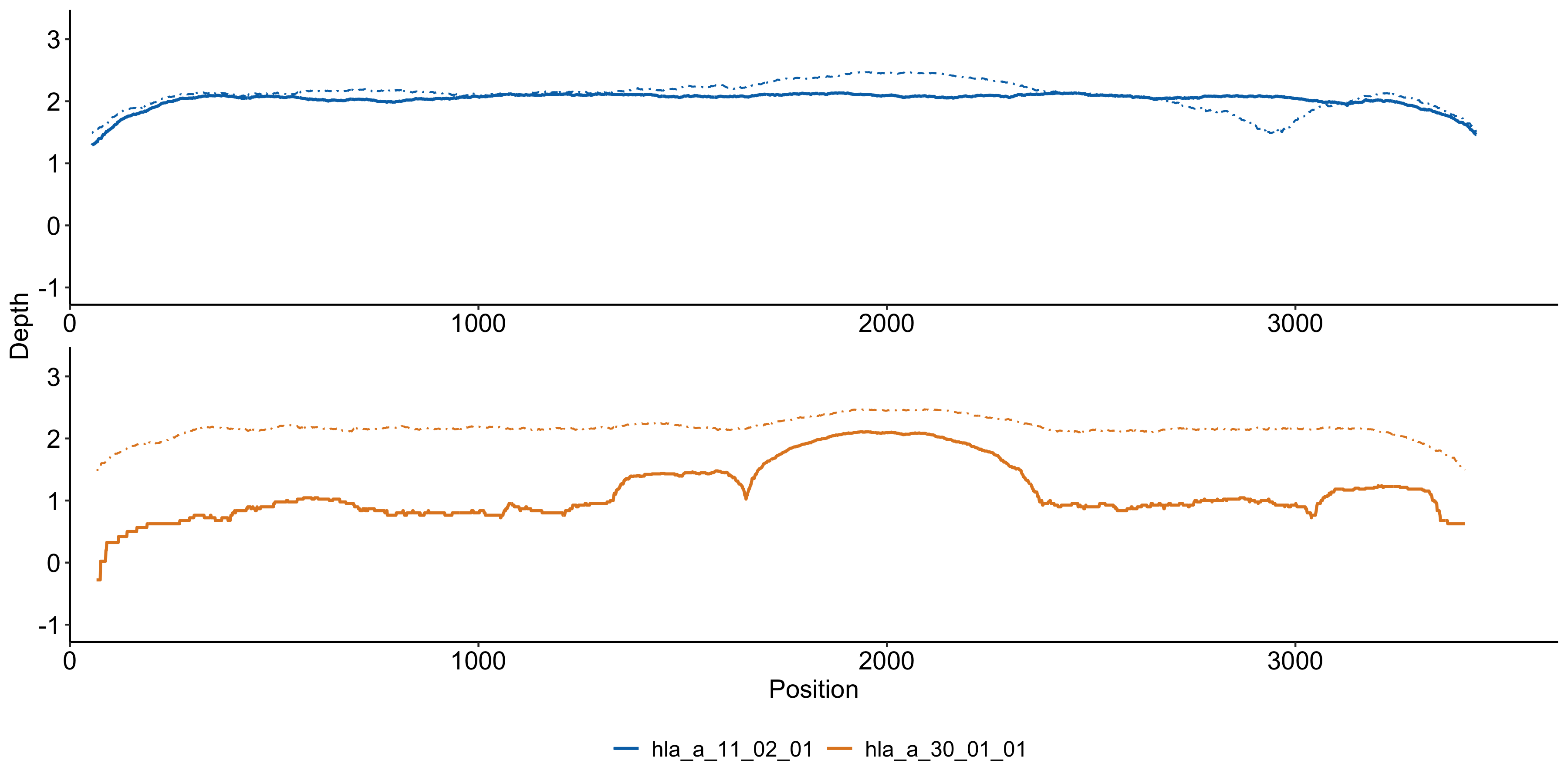

Paired allelic coverage distribution

This plot overlays tumor and normal coverage (log10 scale) for both alleles. Tumor coverage is normalized to account for differences in sequencing depth between the two samples.

  • Dashed Lines: Normal sample coverage.

  • Solid Lines: Tumor sample coverage.

By comparing these distributions in a single view, you can visually confirm whether an allelic imbalance is consistent across the entire gene body.

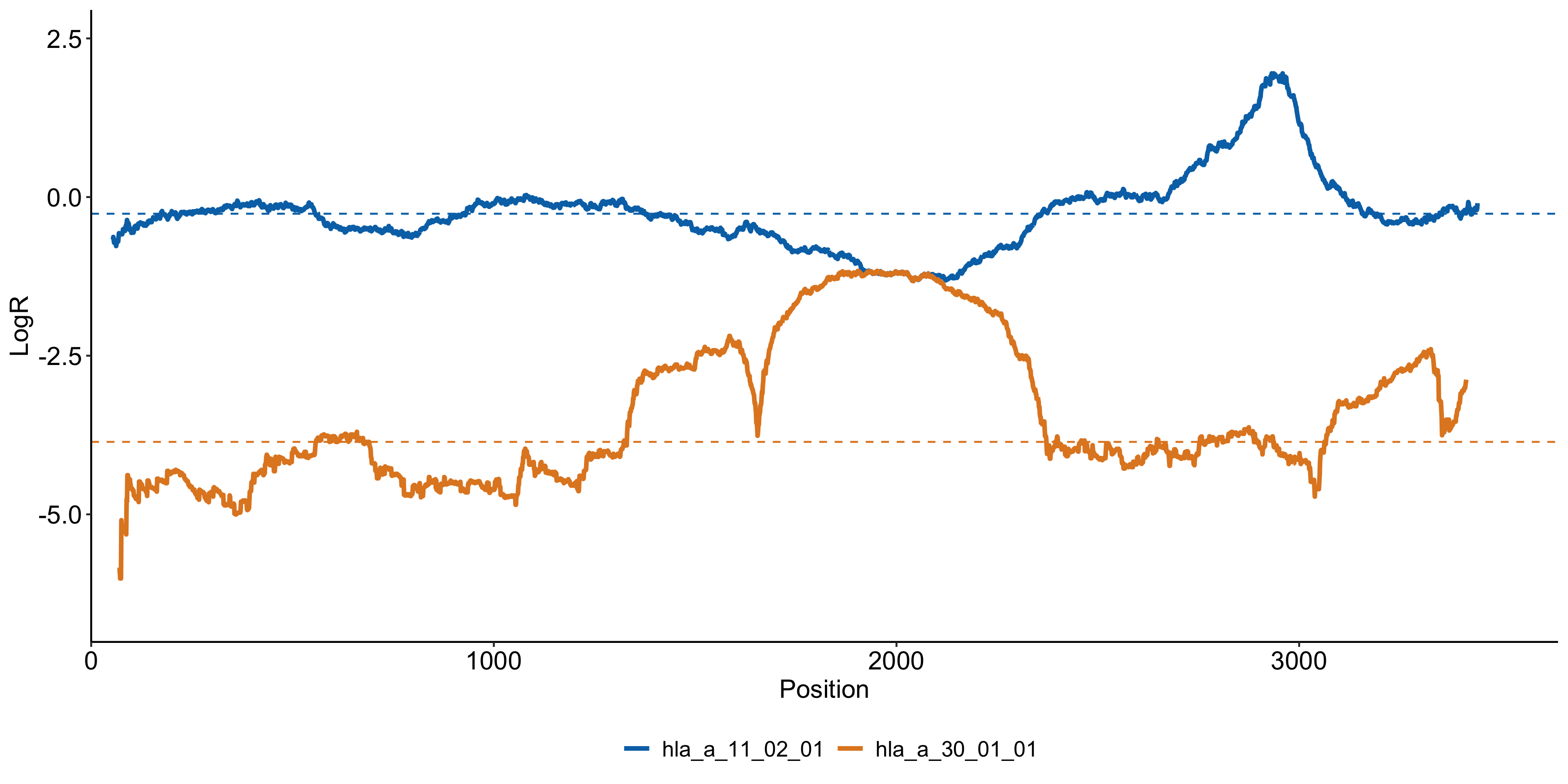

Log ratio distribution

This plot displays the distribution of the tumor-vs-normal log-ratio across the length of both alleles. The dashed lines represent the median LogR estimate for each allele. A significant separation between the two lines suggests a possible LOH event.

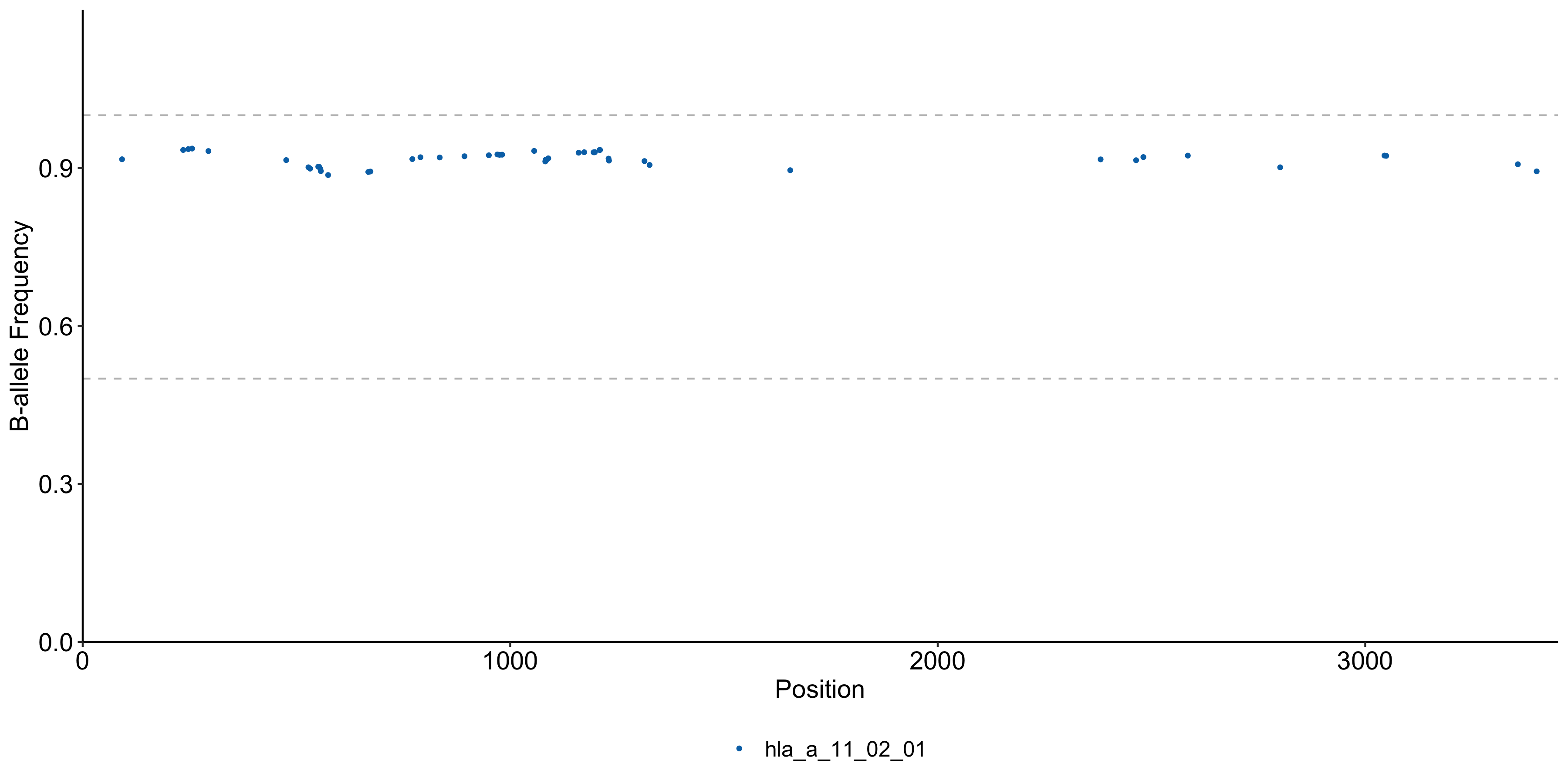

B-allele frequency distribution

The BAF plot focuses on heterozygous SNP sites. In this idealized simulation, there are zero reads covering the heterozygous sites for the lost allele (hla_a_30_01_01), resulting in a BAF of nearly 1 rather than the expected ~0.5.
